When it comes to excavator safety and performance, the small details often make the biggest difference. Excavator bucket pins might seem like simple components, but get the sizing wrong and you’re looking at anything from poor attachment performance to serious safety risks. Whether you’re replacing worn pins or installing new excavator attachments, understanding bucket pins and their specifications can save you time, money, and potentially prevent dangerous failures on site.
At Hogan Engineering, we’ve been manufacturing precision-machined pins and attachments for Australian excavators for decades. We’ve seen what happens when operators try to make do with the wrong pin sizes, and we’ve built our reputation on getting these critical measurements exactly right. Let’s walk through everything you need to know about excavator bucket pins to keep your operation running safely and efficiently.
Why Bucket Pins Matter

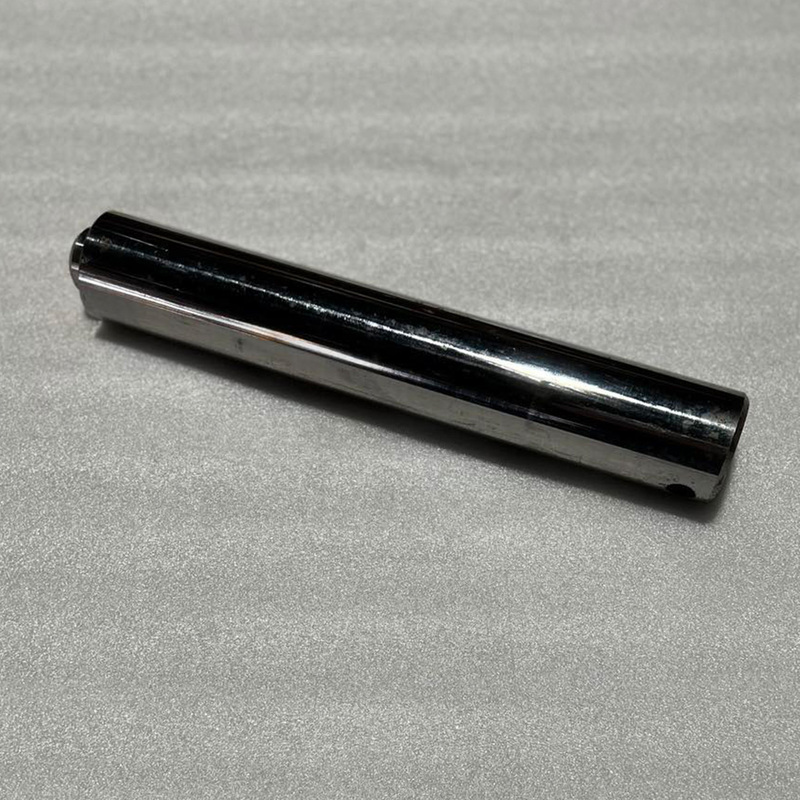

Bucket pins are the critical connection point between your excavator and its attachments. These hardened steel components handle massive loads, constant movement, and the full force of your machine’s hydraulic power. When they fail, the consequences can be catastrophic. A loose or incorrectly sized pin can cause an attachment to detach during operation, potentially injuring workers or damaging machinery.
The challenge is that pin specifications differ significantly between machine models and manufacturers. What fits a 5-tonne Kubota won’t work on a 5-tonne Caterpillar, and assuming they’re interchangeable is a mistake that can cost you dearly. This is particularly important when using quick hitch systems, where precise pin dimensions are essential for safe operation. That’s why Hogan Engineering maintains an extensive database of standard pickup specifications for excavators operating across Australia.
Our precision-machined pins are designed for reliability and safety. Take our Main Pivot Pin, for example. This component is engineered to suit tilt buckets across the 1.5 to 20-tonne range, with each size manufactured to exact specifications that establish a perfect fit and maximum safety margins.
Understanding Pin Terminology and Sizes
Before you can select the right pin, you need to understand the key measurements that determine compatibility. The three critical specifications for any excavator bucket pin are diameter, centre-to-centre distance, and spread.
Pin diameter is straightforward: it’s the thickness of the pin itself, measured in millimetres. This needs to match the bore holes in both your machine’s pickup and the attachment. Even a millimetre deviation can mean the pin won’t fit properly or will wear prematurely.
Centre-to-centre distance refers to the measurement between the centres of the pin bores on your machine’s pickup. This determines how far apart the mounting points are and must match exactly between your excavator and attachment.
Spread, sometimes called ear width, is the distance between the inside faces of the mounting ears when measured at their narrowest point. This determines whether an attachment will physically fit between your machine’s pickup points and can be safely attached.
Here’s where it gets important: front and rear pins on many excavators have different specifications. Always measure both if you’re replacing multiple pins or installing a new attachment system.
How to Measure Your Bucket Pins
Getting accurate measurements is critical for safety and proper fit. Here’s the step-by-step process we recommend at Hogan Engineering.
Step 1. First, remove the old pin completely and clean out the pin bore holes. Any dirt, grease, or debris can throw off your measurements and lead to ordering the wrong size. Use a wire brush or compressed air to guarantee the bores are completely clean.

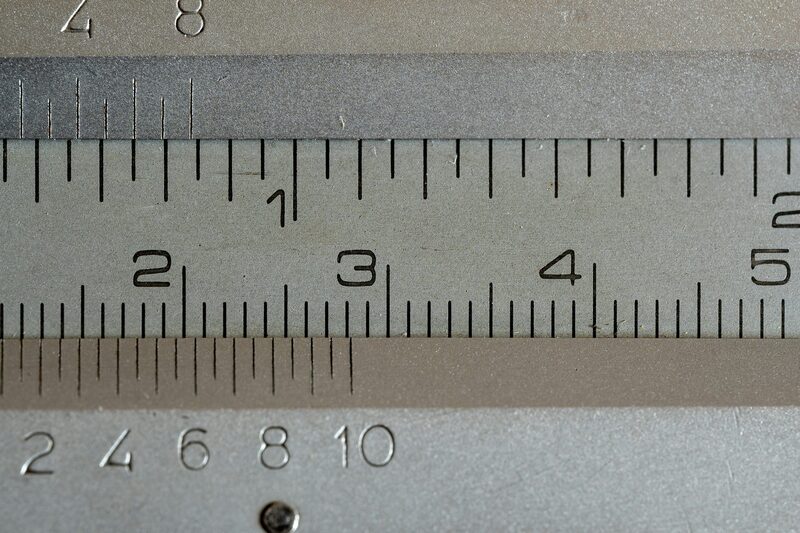

Step 2. Next, use quality callipers or a steel ruler to measure the pin diameter in millimetres. Don’t rely on approximate measurements or assume the pin size based on your machine’s tonnage. Take multiple measurements along the pin’s length to check for wear or deformation.
Step 3. Measure the centre-to-centre distance between pin bore holes using a steel ruler or tape measure. This must be precise, as even a few millimetres difference can prevent proper attachment or create dangerous stress points.
Step 4. Finally, measure the spread by determining the narrowest width between the mounting ears. This is often at the base of the ears rather than at the top, so check multiple points to find the true restriction.
If you’re in the Sydney area, you can bring your machine or bucket to our workshop for precise measuring. Our team can verify specifications against our database and cerity you get the right components. For those outside our local area, careful measurement following these steps will get you the accurate data needed to select the correct bucket pins.
Always double-check your calculations against Hogan’s specification database before ordering. We’ve seen too many cases where field measurements were slightly off, leading to parts that are mismatched or compromise safety. If you aren’t sure about your numbers or don’t feel comfortable taking the measurements, contact us to speak with a member of the team; they’d be happy to guide you through it.
Matching Pins to Your Excavator
Most excavator buckets and attachments are not universal, despite what some suppliers might suggest. Pin centres and spreads vary significantly between manufacturers, and even within the same brand, different model years can have different specifications. This is why generic “one size fits most” approaches often lead to problems.

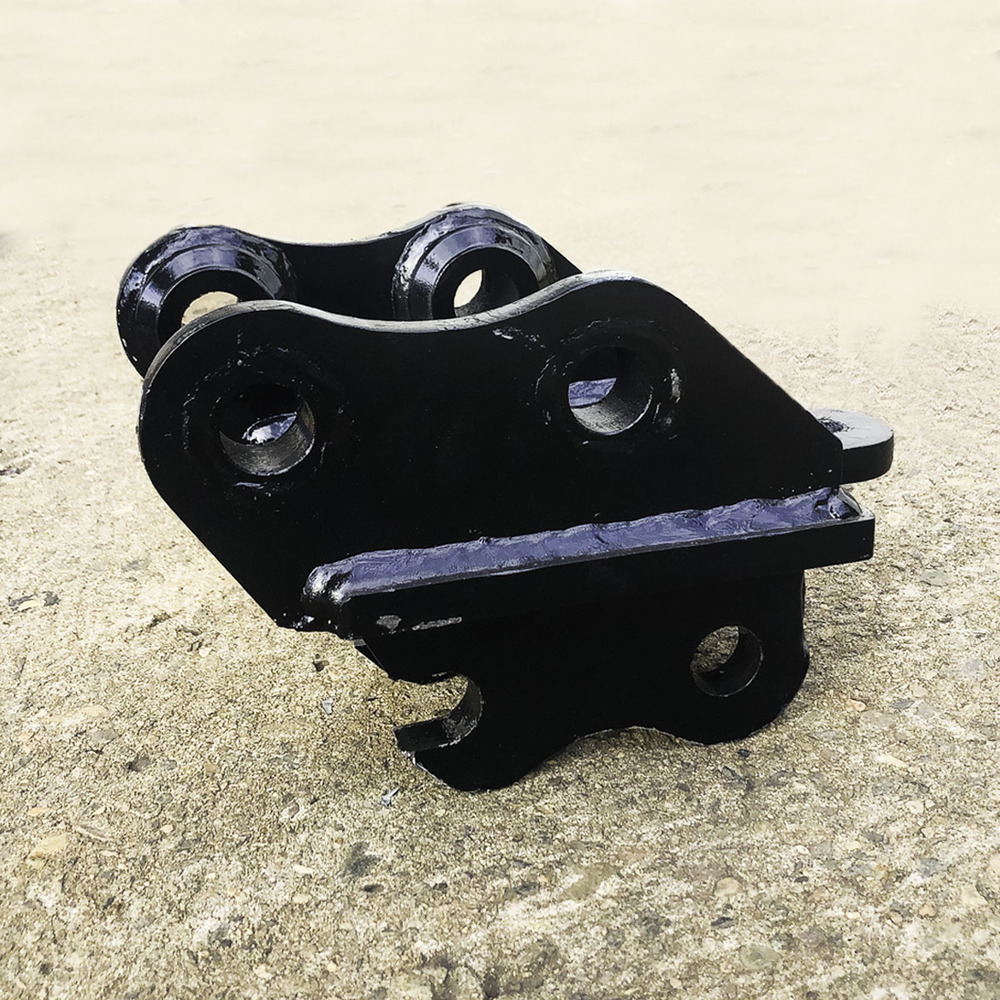

At Hogan Engineering, we offer a comprehensive range of attachment solutions designed for a precise fit. Our 1.5 Tonne Pull Pin Hitch provides quick and easy attachment changes while maintaining the exact pin specifications required for safety. For larger machines, we have a range of manual and pull pin hitches to suit your needs, including a 2.5 Tonne Pull Pin Hitch, 3.5 Tonne Manual Hitch, 5 Tonne Manual Hitch, and 6.5 Tonne Manual Hitch. Each of our hitches is manufactured with CNC-machined pin centres, establishing perfect positioning every time.
The key advantage of our CNC machining process is consistency. When we manufacture pins and hitches, every component meets exact specifications without the variations that can occur with less precise manufacturing methods. This attention to detail ensures that your attachments fit properly, operate safely, and don’t create unnecessary wear on your machine or buckets.
Our large library of machine data allows us to mix and match pickups to suit specific needs. Whether you’re running multiple machine types or need to adapt older attachments to newer excavators, we can provide the precise pin specifications required for safe, reliable operation.
Pin Examples from Hogan’s Range
- Our Main Pivot Pin serves tilt buckets across the 1.5 to 20-tonne range. These pins are precision-manufactured to handle the additional stresses of tilt bucket operation, where pins must accommodate both vertical loads and the lateral forces created by bucket tilting.

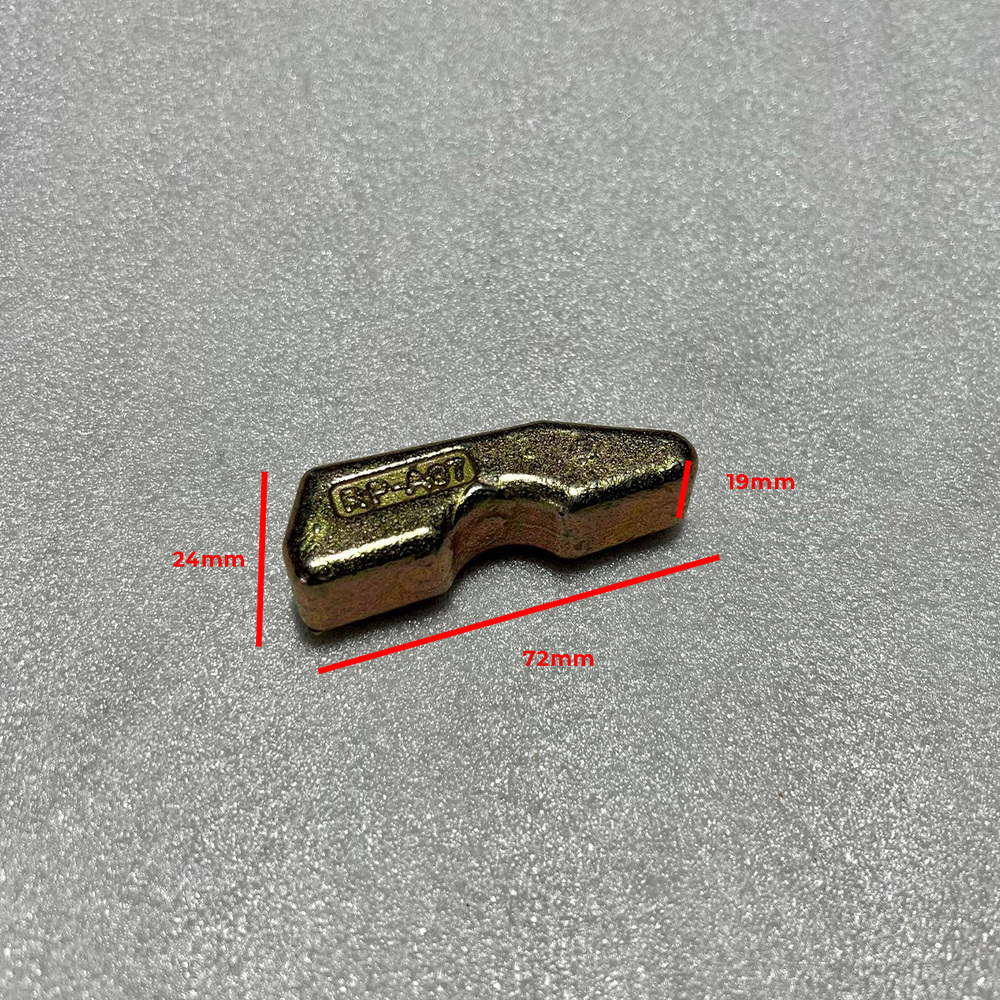

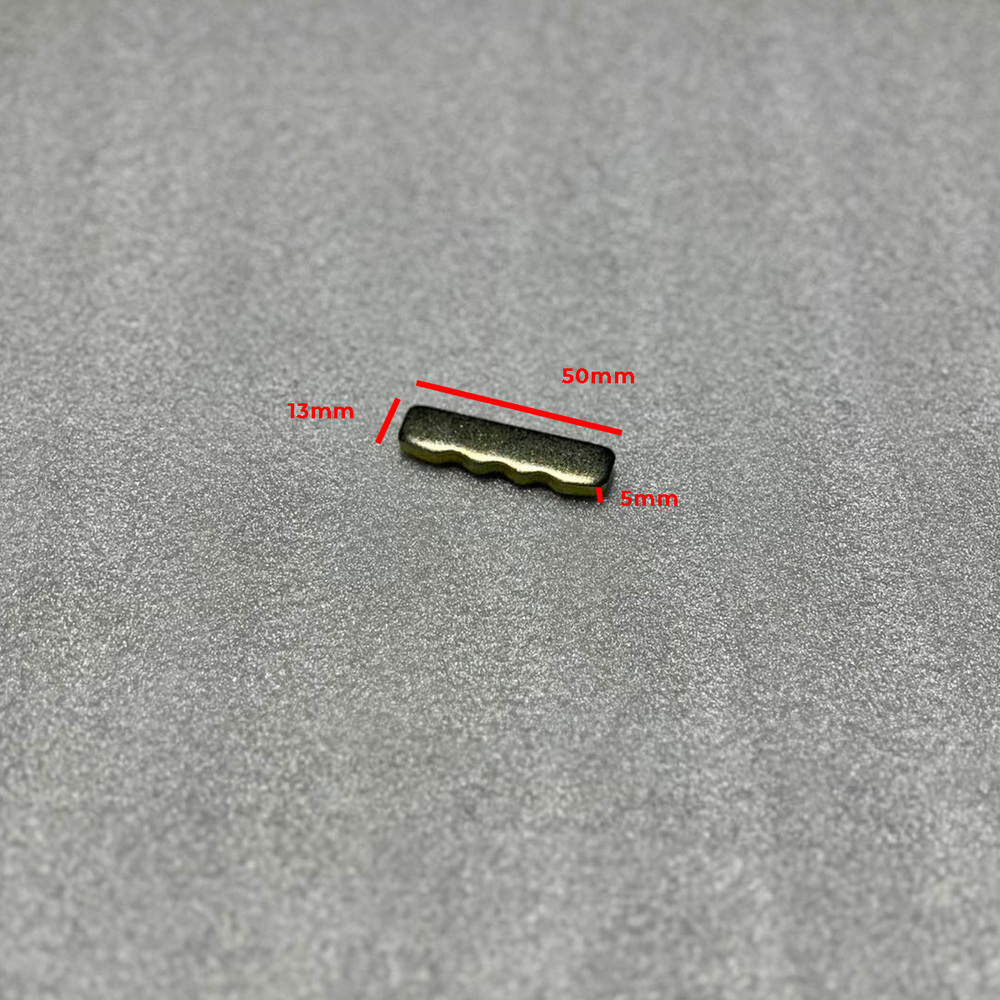

- The RPA-07 Pin is specifically designed for tooth adaptors in the 12-tonne range. This component demonstrates how pin applications extend beyond just bucket mounting – tooth systems, cutting edges, and other wear components all rely on properly sized pins for secure attachment.
- For GP buckets in the 5 to 5.5-tonne range, our 18-20PN Pin (18 Series) provides the exact specifications needed for reliable operation. The precise sizing ensures proper load distribution and prevents the premature wear that occurs when pins are even slightly oversized or undersized.

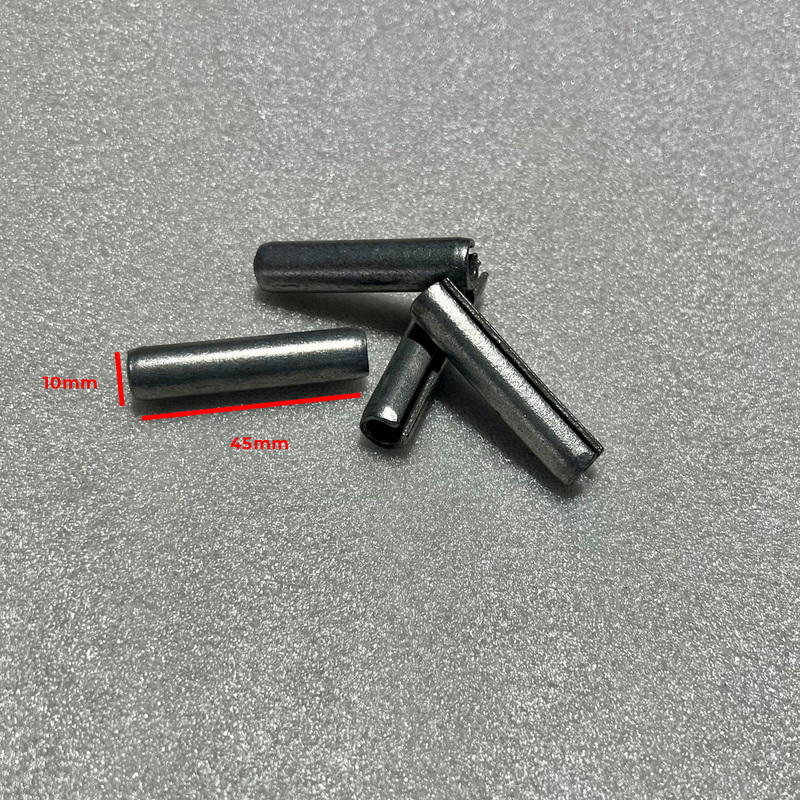

- At the smaller end of our range, the M10 Roll Pin serves tooth systems on 1 to 3.5-tonne excavators. Although the loads might be lower on smaller machines, proper, precision pin selection is just as important for safety and performance.
Each of these pins represents specific engineering solutions for particular applications and tonnage ranges. This variety demonstrates why generic approaches to pin selection often fall short – the right pin for your application depends on your exact machine specifications and intended use.
Maintenance Tips for Longevity and Safety
As with any component on your machine, proper maintenance extends pin life and certifies your team’s safety. Regular lubrication is essential for greaseable pins, particularly in tilt bucket applications where our fully greaseable systems with hardened pins require consistent greasing schedules to prevent premature wear.
Inspect pins regularly for signs of wear, scoring, corrosion, or looseness. Surface damage often indicates that a pin is oversized or undersized for its application, causing excessive movement or binding. Catching these issues early prevents more serious problems and potential safety hazards.
Pay attention to retaining hardware as well. Properly tightened bolts, clips, and other retention systems are just as important as the pins. Loose hardware allows pins to work their way out of position, creating dangerous conditions that can lead to attachment failure.
Replacement is the only safe option when pins show signs of significant wear, diameter reduction, or surface damage. If a pin is showing signs of wear, substitute it immediately rather than trying to extend its service life. The cost of a new pin is minimal compared to the potential costs of equipment damage or safety incidents caused by pin failure.
Keep spare pins on hand for critical applications. Having the right replacement parts readily available minimises downtime and confirms you’re not tempted to use incorrect pins as temporary solutions.
How Hogan Can Help You Get the Right Pin
Selecting the correct pin doesn’t have to be complicated when you have the right support. At Hogan Engineering, our extensive database contains specifications for most excavator models operating in Australia, and our experienced team can provide tailored advice for your specific application.
For customers in the Sydney area, we highly recommend bringing your machine or bucket to our workshop for precise measurement and specification verification. Our team can determine exactly what you need and ensure compatibility before you make any purchase decisions.
For those outside our local area, contact us so our team can offer phone and email support to guide you through the measurement process and help verify specifications against our database. Our goal is to ensure you get exactly the right components the first time, avoiding the delays and costs associated with incorrect parts.
While our online parts store makes ordering standard components easy and convenient, we still strongly recommend verifying key measurements before placing your order. To see our full range, explore our tilt bucket components and spare parts, and as always, confirm your specifications with our team if you have any doubts about compatibility.
Remember that getting the right pin is about ensuring safe, reliable operation over the long term as much as it is about getting an immediate fit. Properly specified pins distribute loads correctly, minimise wear on both the pin and surrounding components, and provide the safety margins needed for demanding construction work.
Simplify Your Pin Replacement with Hogan Engineering
Understanding pin diameter, centres, and spread measurements gives you the confidence to select the right pin and bucket combination for your excavator.
At Hogan Engineering, we’ve manufactured precision pins, hitches, and adaptors across all tonnage ranges for decades, backed by expert measuring support and our comprehensive specification database. Whether you need a single replacement pin or a complete attachment system, our team ensures you get components that fit perfectly and operate safely.
Don’t leave excavator safety to chance. Contact us today to discuss your pin requirements and explore our selection of excavator attachments. From mud buckets and root rakes to excavator rippers and lifting eyes, we’ve got it all, including the ability to deliver custom-built excavator attachments tailored to your needs.
